We service all plasma cutting and welding equipment, please contact us for any repairs. We fix Lincoln, ESAB, Miller, and many more.

*** UPDATE: We now have limited quantities of the 200amp AC/DC TIG Welders in stock


CT-520D DUAL VOLTAGE PLASMA CUTTER TIG STICK WELDER
Specifications:
Power voltage: 120/220V dual voltage
Capacitance: 6.8KVA
No Load Loss: 40W
Duty Cycle: 60%
Dimensions: 290x440x560mm
Weight: 18Kg 		TIG
Input Current: 17.8A
Rated Output Current: 200A
Current Range: 5-200A
No Load Voltage: 68V
Working Voltage: 18V
GAL Flow: 2-5L/Min
ARC Leading: HF

 CUT
Input Current: 32.3A
Rated Output Current: 50A
Current Range: 20-50A
No Load Voltage: 270V
Working Voltage: 135V
GAL Flow: 0.4MPAL/Min
ARC Leading: HF

 ARC
Input Current: 25A
Rated Output Current: 160A
Current Range: 20-160A
No Load Voltage: 68V
Working Voltage: 27.5V
**Optional foot-pedal controlled.
Pedals sold for an $69.99 additional cost.




Price: $649.99 + Shipping $50.00

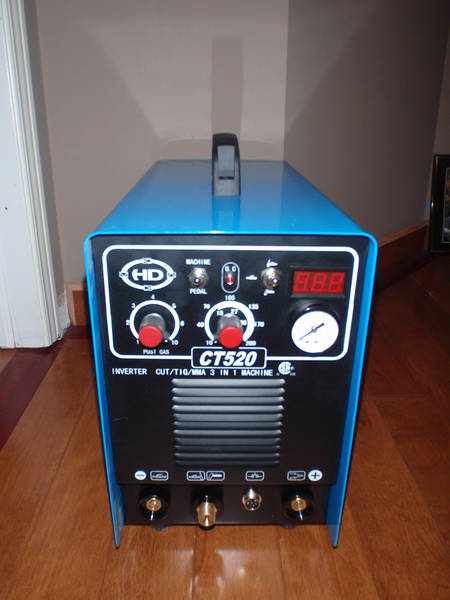

CT-520 220/240 VOLTS ONLY PLASMA CUTTER TIG STICK WELDER
Specifications:
Power voltage: 220/240V
Capacitance: 6.8KVA
No Load Loss: 40W
Duty Cycle: 60%
Dimensions: 290x440x560mm
Weight: 18Kg 		TIG
Input Current: 17.8A
Rated Output Current: 200A
Current Range: 5-200A
No Load Voltage: 68V
Working Voltage: 18V
GAL Flow: 2-5L/Min
ARC Leading: HF

 CUT
Input Current: 32.3A
Rated Output Current: 50A
Current Range: 20-50A
No Load Voltage: 270V
Working Voltage: 135V
GAL Flow: 0.4MPAL/Min
ARC Leading: HF

 ARC
Input Current: 25A
Rated Output Current: 160A
Current Range: 20-160A
No Load Voltage: 68V
Working Voltage: 27.5V
**Optional foot-pedal controlled.
Pedals sold for an $69.99 additional cost.




Price: $649.99 + Shipping $50.00


CT-416 DC Inverter PLASMA CUTTER ARC MMA TIG Welder
Specifications:
Input voltage: 240V
Frequency: 50/60 hz
Dimensions: 423x173x273mm
Weight: 11kg

TIG
Input Current: 23.5A
Rated Output Current 160A
Current Range: 10-160
No-Load Voltage: 64V
Working Voltage: 16.4V
Gas Flow: 2-5L/Min
Way to Strike Arc: H/F Vibration

 CUT
Input Current: 29A
Rated Output Current 40A
Current Range: 10-40
No-Load Voltage: 260V
Working Voltage: 96V
Nozzle Inside Diameter: 1.2mm
Air Pressure: 0.4Mpa
Gas Flow: 80L/Min
Cutting Thickness: 1-12mm
Way to Strike Arc: H/F Vibration

 		MMA
Input Current: 28A
Rated Output Current 150A
Current Range: 10-150
No-Load Voltage: 64V
Working Voltage: 26V
Way to Strike Arc: Touch



Price: $499.99 + Shipping $50

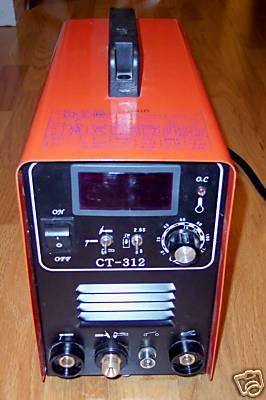

CT-312 DC INVERTER PLASMA CUTTER ARC MMA TIG Welder
Specifications:
Input voltage: 240
Frequency: 50/60 hz
Weight: 8kg
Dimensions: 371x155x287mm

TIG
Input Current: 10.2A
Rated Output Current 125A
Current Range: 15-120
No-Load Voltage: 58V
Working Voltage: 15V
Gas Flow: 2-5L/Min
Way to Strike Arc: H/F Vibration

 CUT
Input Current: 14.3A
Rated Output Current 30A
Current Range: 10-30
No-Load Voltage: 220V
Working Voltage: 92V
Nozzle Inside Diameter: 1.0mm
Air Pressure: 0.4Mpa
Gas Flow: 80L/Min
Cutting Thickness: 1-8mm
Way to Strike Arc: H/F Vibration

 		MMA
Input Current: 15.6A
Rated Output Current 15A
Current Range: 15-110
No-Load Voltage: 58V
Working Voltage: 23V
Way to Strike Arc: Touch



Price: $399.99 + Shipping $45


Plasma Cutter CUT-50D

Specifications:
Power voltage: single Phase 120/240 volts
Weight: 12kg
Dimension: 245x360x535mm
Cutting thickness: 1-16mm
Output Current: 50A
Duty cycle: 60%
Input capacity: 6.5KVA
No-Load Voltage: 225Volts
Air Pressure: 0.45MPA
Burner Inter Diameter: 1.0mm



Price: $449.99 + shipping $40

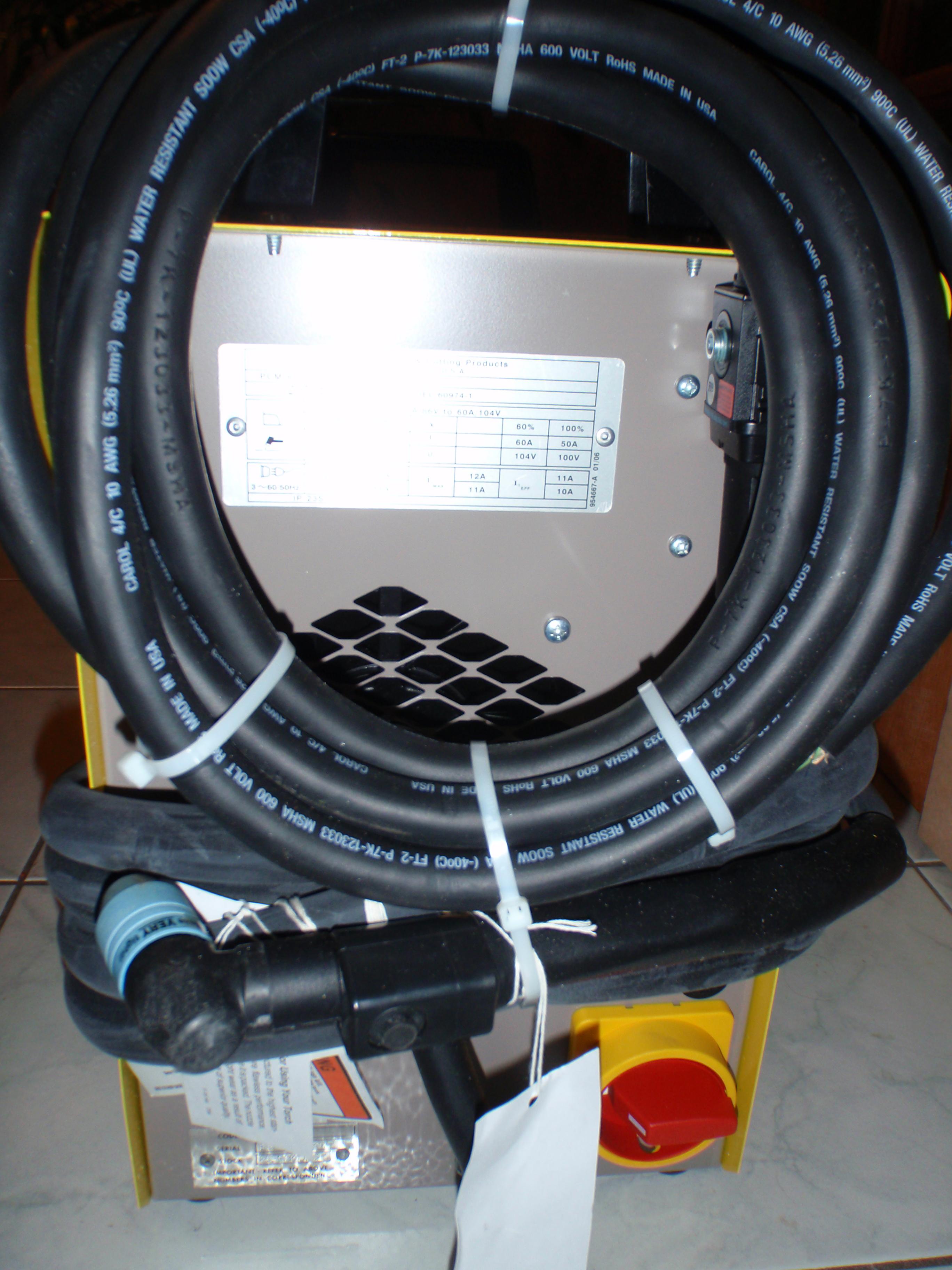

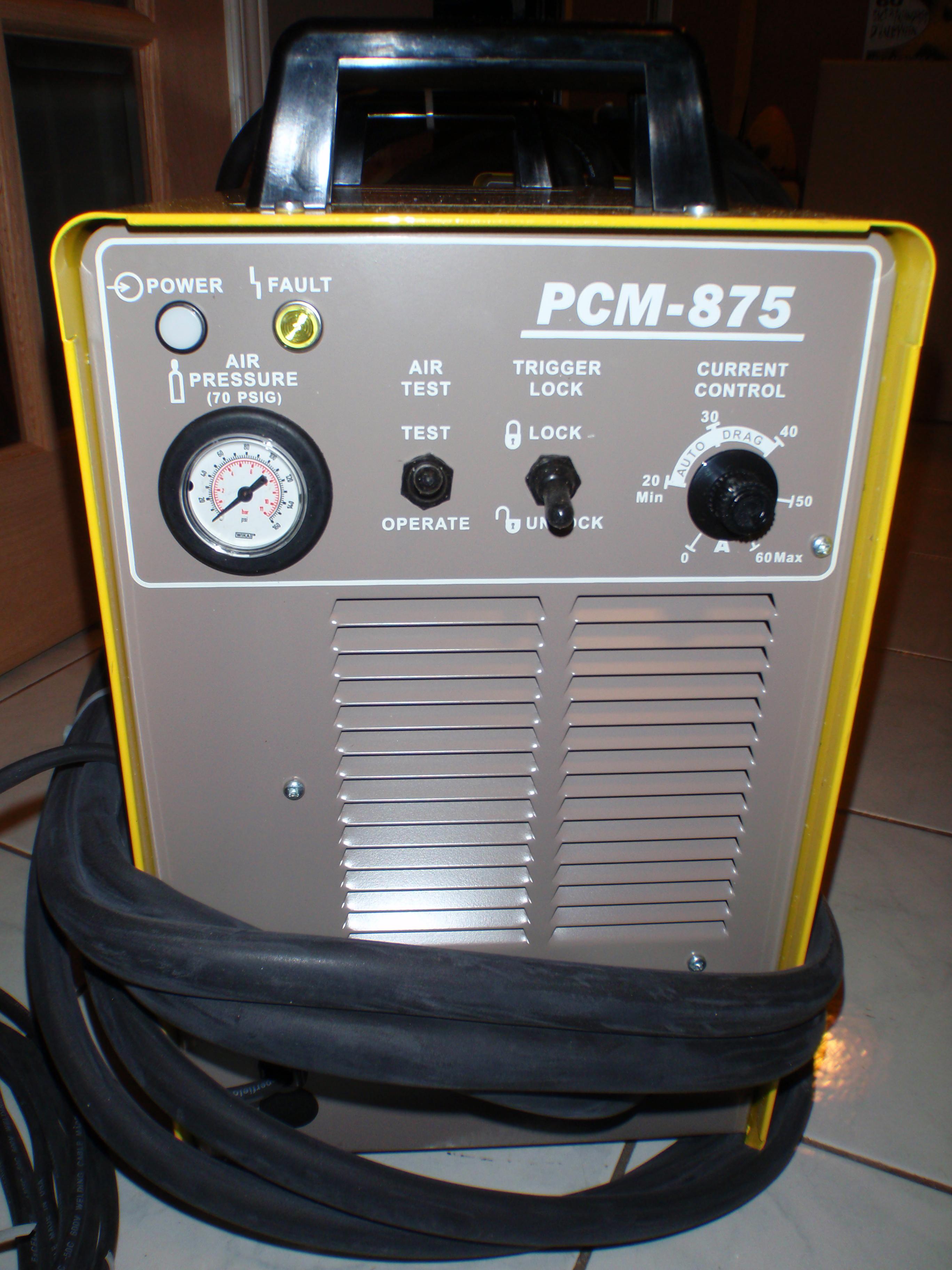

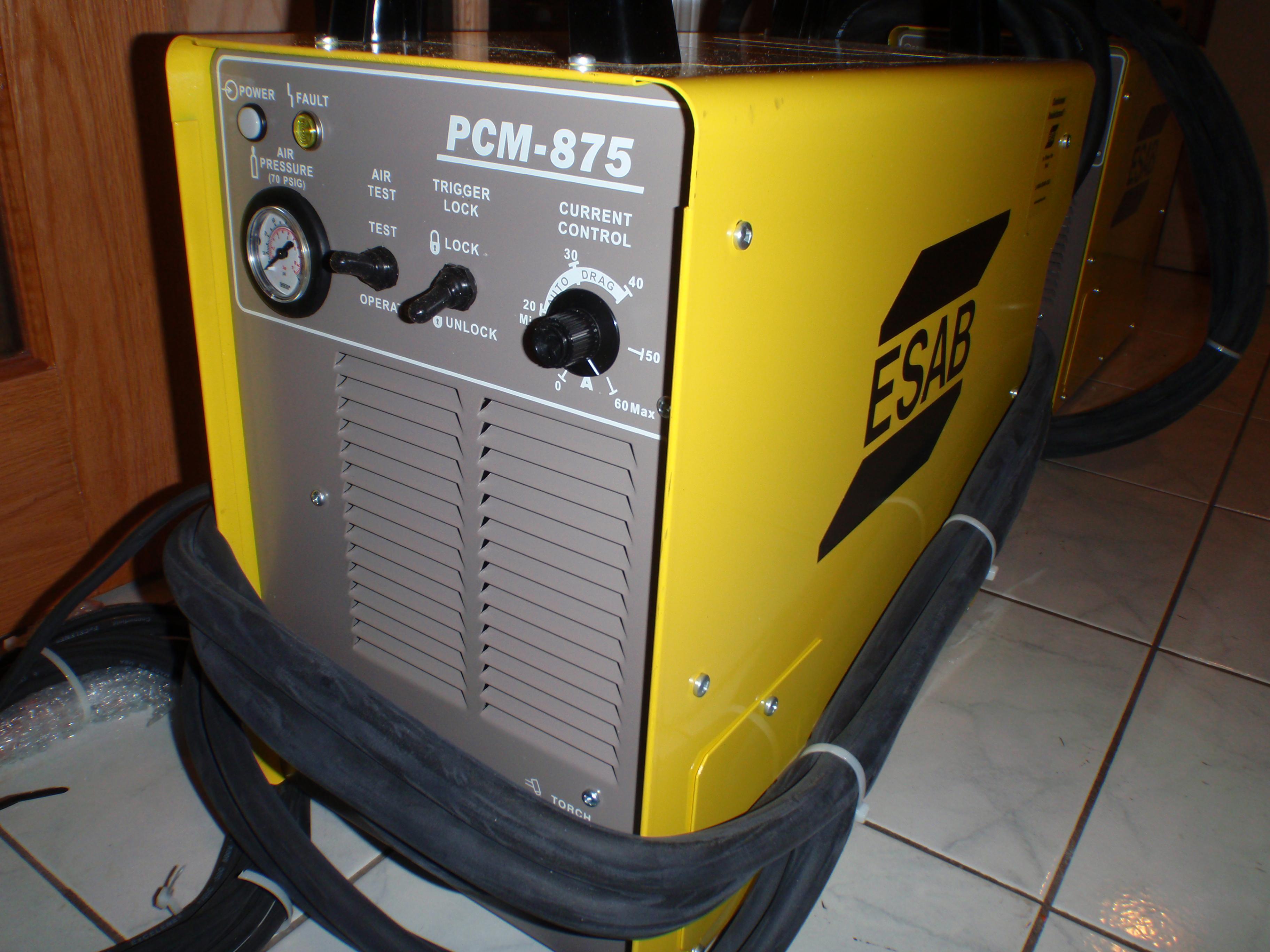

ESAB PCM-875 PLASMA CUTTER

Specifications:
P/N 36592 - 460 V, 3-Phase, 50/60 Hz

Rated Output
60% Duty Cycle* 60 A @ 120 V dc
100% Duty Cycle* 50 A @ 120 V dc

Output Current Range 10 to 60 Amperes
Open Circuit Voltage 275 V dc
Rated Primary Input @ 7.2 kW Max.
Output Power 60 A @ 120 Vdc 208/230 V ac, 50/60
Hz, 3-phase
26/24 A/phase
208/230 V ac
50/60Hz
1-phase
55/49 A
400 V ac, 50/60 Hz, 3-phase
13 A/phase460 V ac, 50/60 Hz 3-phase
11 A/phase 575 V ac, 50/60 Hz
9 A/phase Power Factor @ 60 Amperes Output
74% (208/230 V, 1-phase)
90% (208/230 V, 3-phase)
92% (400/460 & 575 V, 3-phase)
Efficiency @ 60 Amperes Output 90% Typical
Current Capacity PT-27 80 A DCSP
Air Requirements PT-27
320 cfh @ 65 - 75 psig
(150 l/min @ 4.5 - 5.2 bars)
Weight of PCM-875 System
Shipping Weight
87 lbs (39.5 kg)
100 lbs (45.4 kg)


Price: $1599.99+ shipping $100

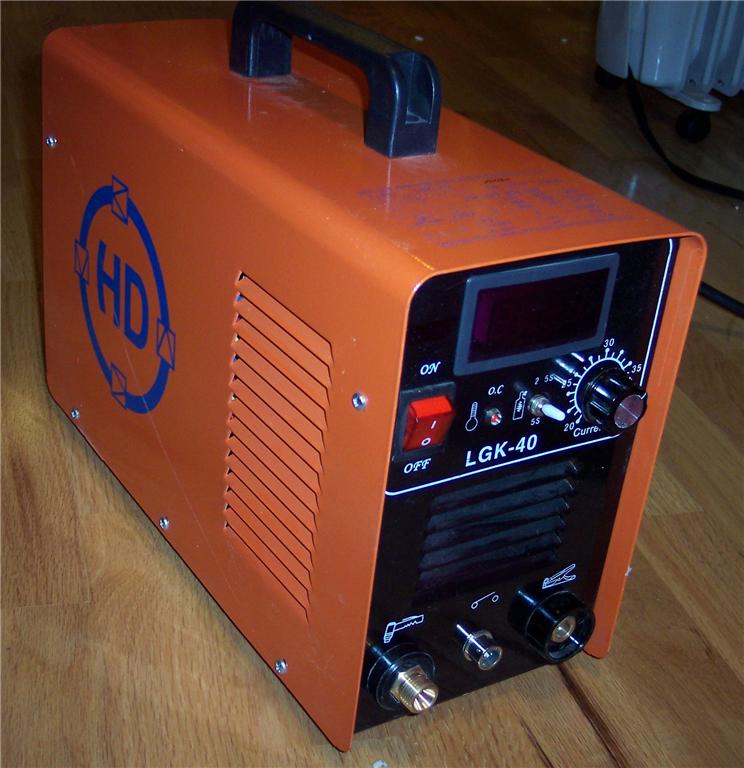

Plasma Cutter 40A Digital Display

Specifications:
Power voltage: single Phase 240 volts
Frequency: 50/60 Hz
Rated Input Currant: 22A
Rated Input Power: 4.85KW
Outside Fuse: 25A/250V
Outside Switch Type: 25A.250
No-load Voltage: 230V
No-load Loss: <130W
Output Current: 20-40A
Cutting Thickness: 1-12mm
Rated Duty Cycle: 35% at 40A, 60% at 30A, 100% at 23A
Efficiency: 0.85
Power Factor 0.7-0.9
Cover Protection Grade: IP21
Insulation Grade: F
Weight: 10Kg

Price: $399.99 + Shipping $40

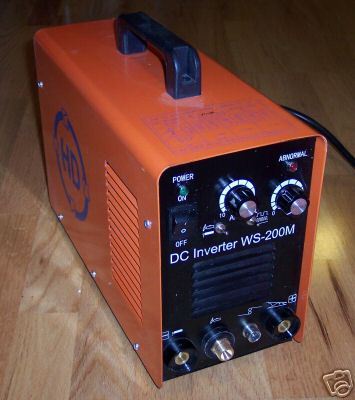

HD PULSE DC Inverter TIG MMA 200 Amps

Specifications:
Input voltage: 240V
Frequency: 50/60 Hz
Rated Input Currant: 32A
Rated Input Capacity: 7 KWA
Rated Welding Current: 200A
No-Load Voltage: 62V
Current Range: 10-200A
Rated Duty Cycle: 35%
Weight: 11Kg
Size 442x174x330mm

TIG 35% - 200AMPS
TIG 60% - 154AMPS
TIG 100% - 117AMPS
ARC 20% - 176AMPS
ARC 60% - 101AMPS
ARC 100% - 80AMPS



Price: $349.99 + Shipping $40

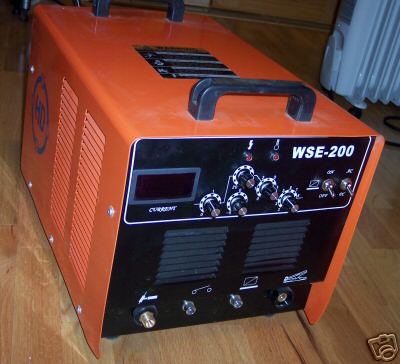

AC/DC Aluminum Inverter TIG Welder 200 Amps

Specifications:
Rated Input Voltage: 220V
Rated Frequency: 50/60Hz
Rated Input Current 21
Rated Input Power 4.7KVA
Outside Fuse: 25A
Outside Switch Specification: 15A/AC250V
No Load Voltage: 58V
No Load Loss: 130W
AC Alumina Cleaning Effect %: 20-80
Gas Ahead Time: 0-2S
Gas Attenuation Time: 2-10S
Welding Current: 20-200A
Rated Duty Cycle: 35%
Efficiency: >0.85
Power Factor: 0.7-0.9
Cover Protection Class: IP21
Dimension: 498x328x302
Weight: 20Kg
*optional Foot-Pedal operated

Price: $699.99 + Shipping $70

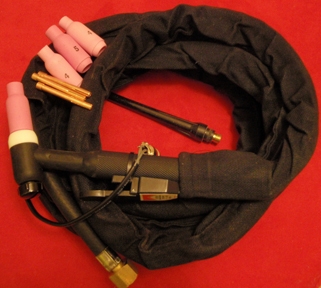

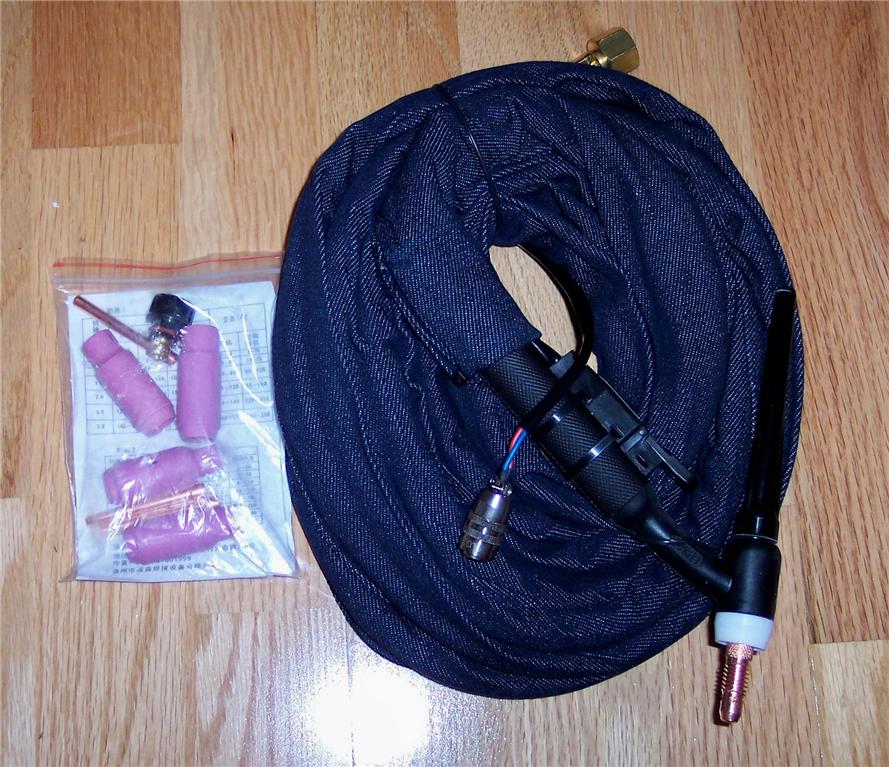

TIG Torch

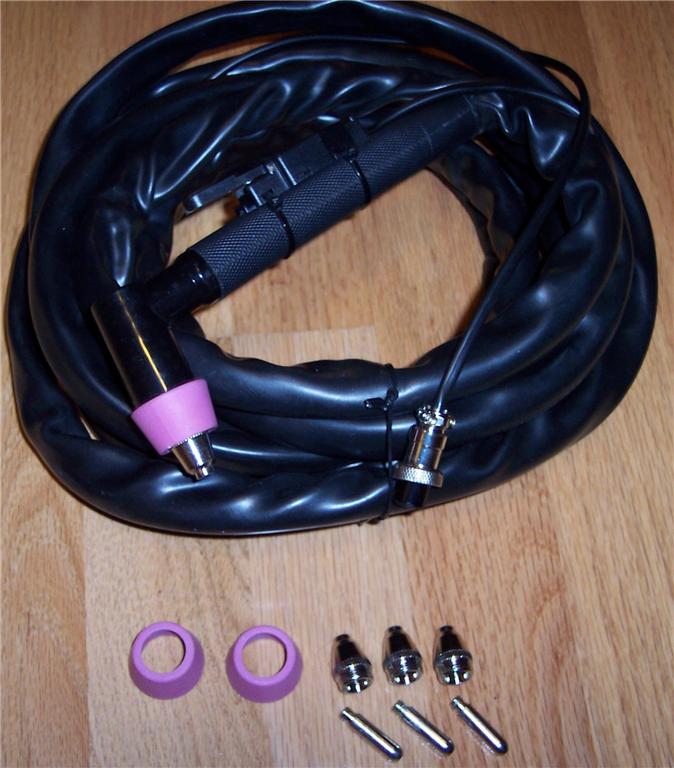

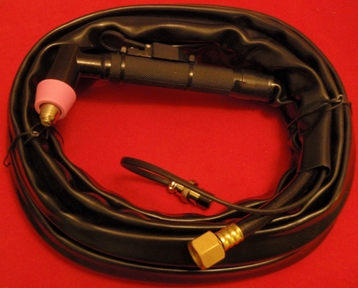

$79.99		 Plasma Torch 60a

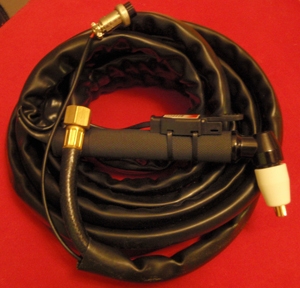

$59.99		 Plasma Torch 40a

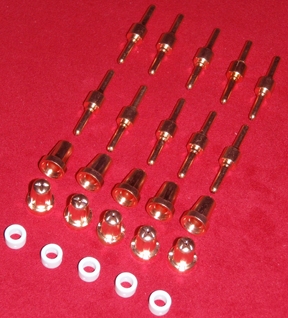

$39.99		 Consumable Kits $39.99
(10 plasma tips, 10 hafnium electrodes, 5 swirl rings)

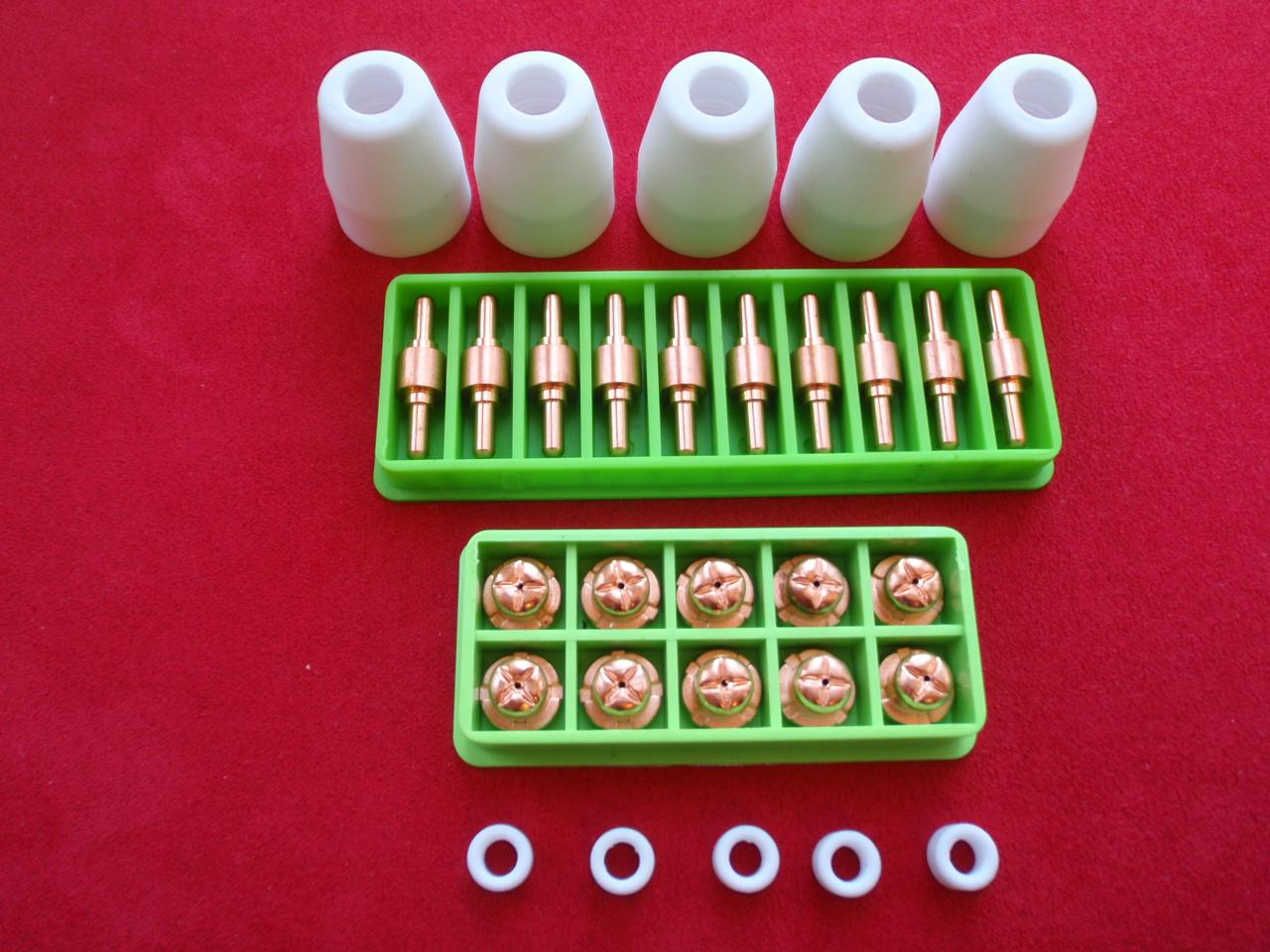

30 Piece PT-31 40 amps consumables

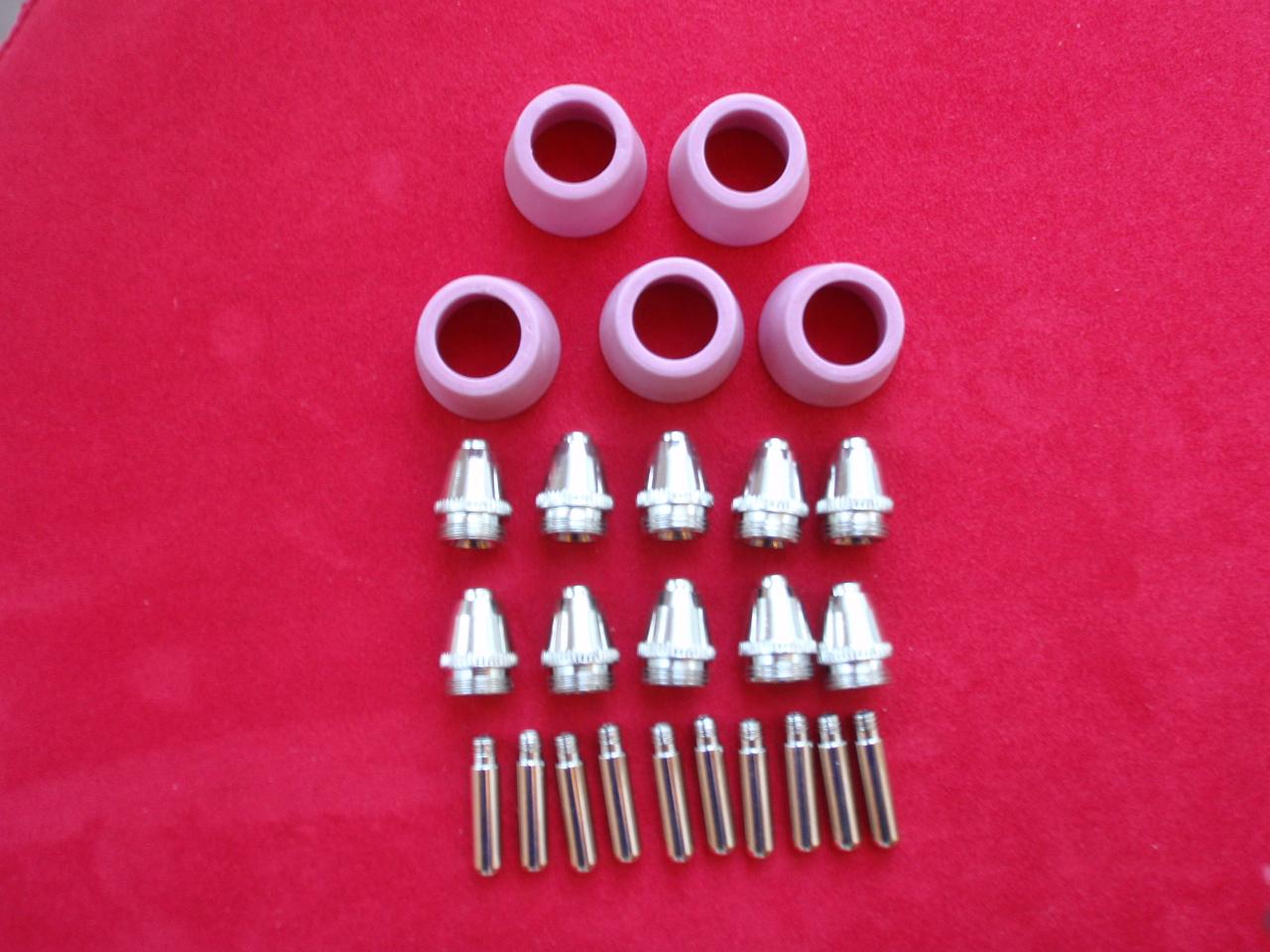

$24.99		 25 Piece 60 amps consumables

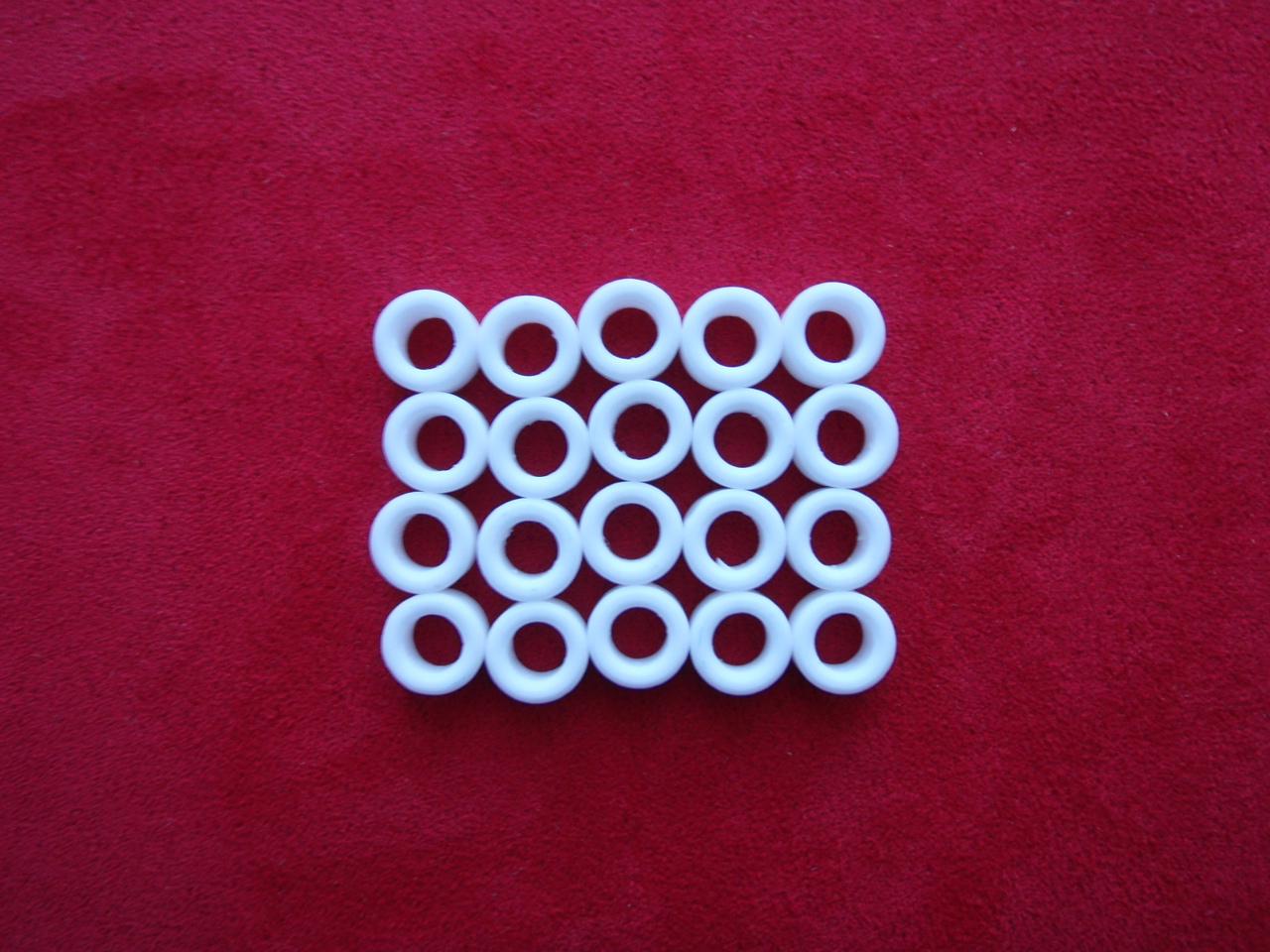

$49.99		 20 Swirl Rings

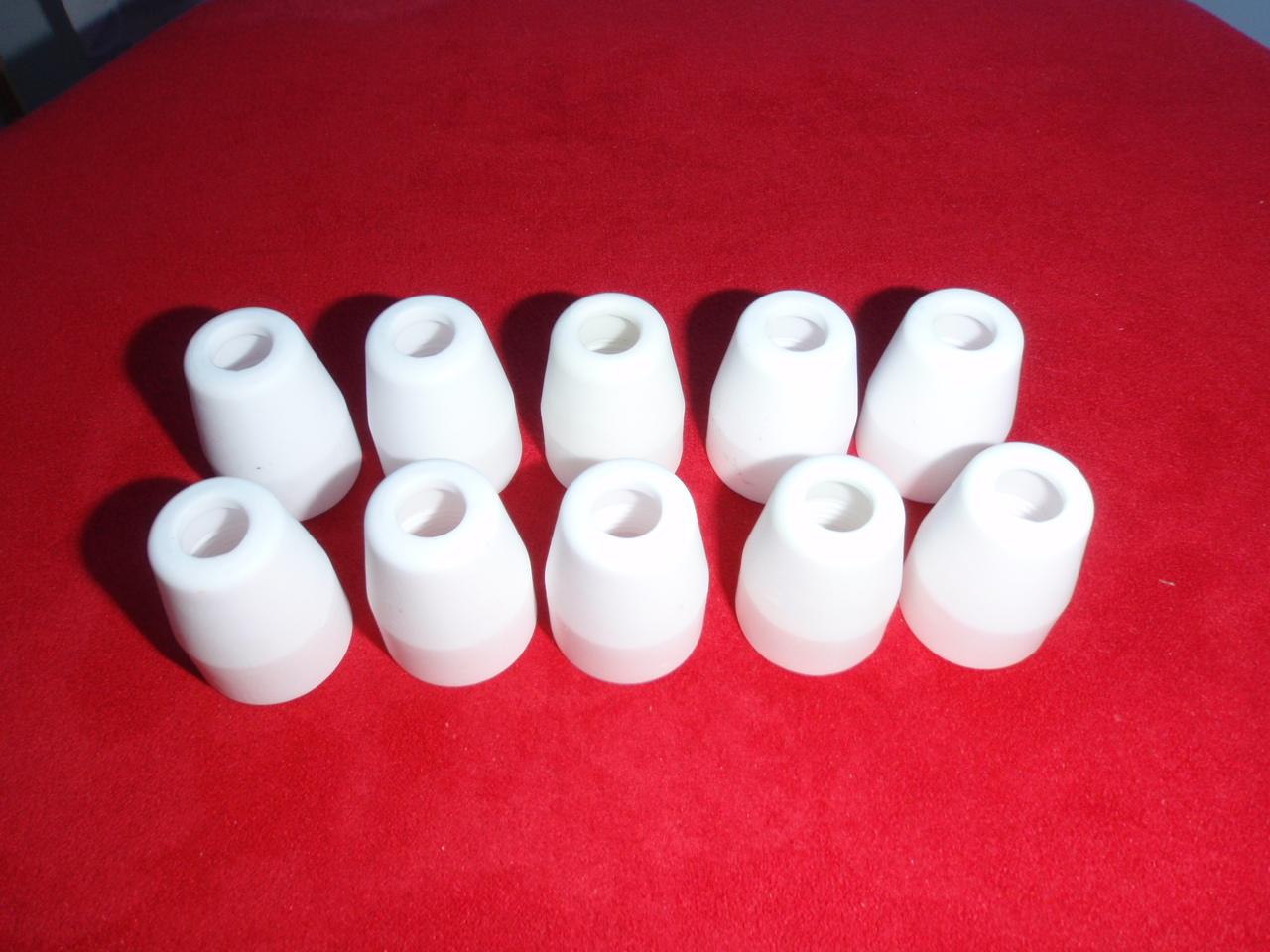

$19.99		 40 Amps Ceramic Cups $29.99
(10 plasma tips, 10 hafnium electrodes, 5 swirl rings)


Payment options
In addition to credit card payment, you can make payment by money order or certified cheque.
Allow 10 business days to receive product(s) if paying by cheque, company mailing address as follows.
Shipping

Product will be shipped same day or next morning for overnight purchases and upon confirmation of payment.
All products are tested for correct operation and all accesories checked before shipping.
Applicable taxes - Canada only.
Residents of Ontario, British Columbia, Nova Scotia, New Brunswick and Newfoundland and Labrador residents an additional pay 13% (HST). All other Canadian provinces/territories pay an additonal 5% (GST).
US and international buyers do not pay any taxes.
